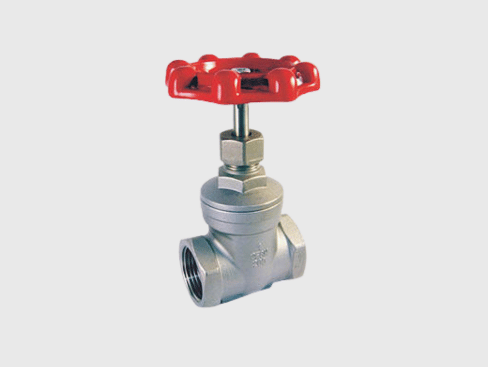

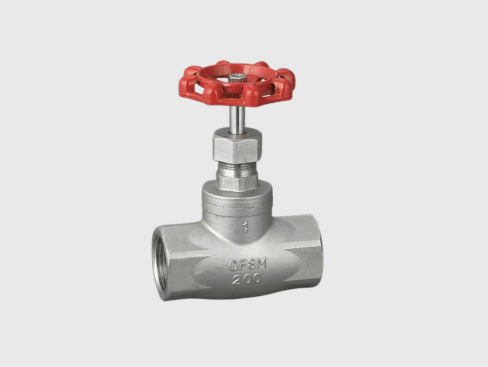

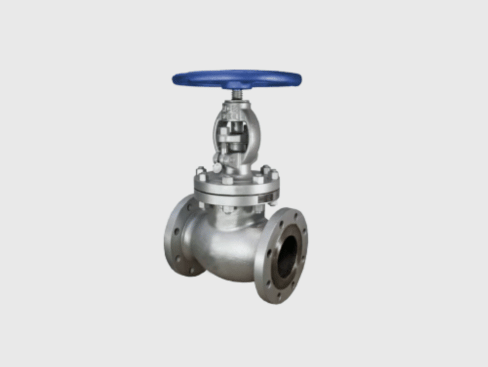

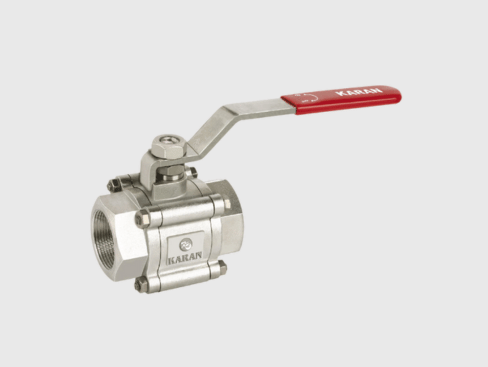

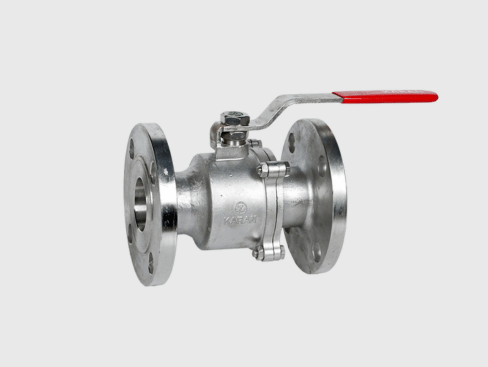

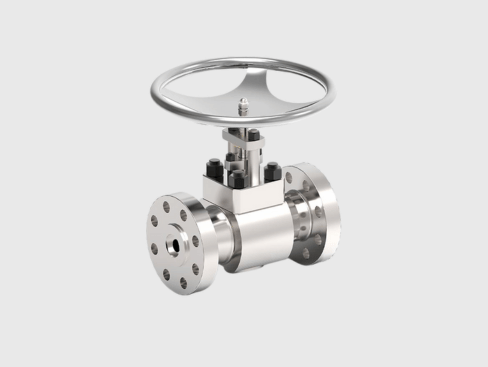

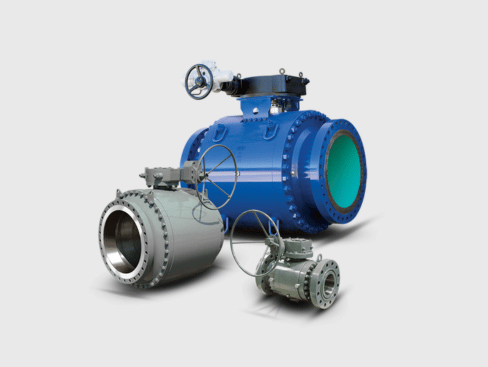

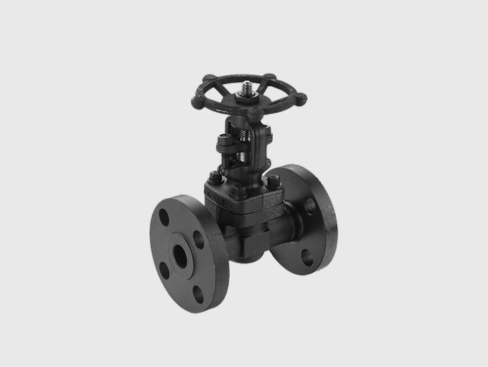

VALVES
Valves are applied for a variety of functions, including fluid controlling, regulating the flowing of fluid in piping systems, pressure controlling of the flow direction, throttling flow systems, and improving system safety in different industries. We supply major types of valves based on their industrial importance and usage.
SPECIFICATION
| MATERIAL GROUP |
COMMON NAME |
NOMINAL TYPE |
FORGING SPEC. |
CASTING SPEC. EQUIVALENT |
DIN | APPLICATION NOTES |
| Carbon Steel | CS | C-Mn-Fe | A105N | A216-WCB | C22.8 DIN 17243 | General non-corrosive service from -20F(-29C) to 800F(427C) |
| Low Temperature Alloy Steel |
Nickel Steel | 3.1/2Ni | A350-LF3 | A352-LC3 | 10Ni14 | -150F(-101C) to 650F(340C) |
| Low Alloy Steel |
Alloy Steel Chrome Moly |
1.1/4Cr-1/2Mo | A182-F11 Cl2 | A217-WC6 | 13CrMo44 | Up to 1100F (593C) |
| 2.1/4Cr-1Mo | A182-F22 Cl3 | A217-WC9 | 10CrMo910 | Up to 1100F(593C), HP steam | ||
| 5Cr-1/2Mo | A182-F5 | A217-C5 | 12CrMo195 | High temp refinery service | ||
| 9Cr-1Mo | A182-F9 | A217-C12 | X12CrMo91 | High temp erosive refinery service | ||
| 9Cr-1Mo-V | A182-F91 | A217-C12A | X10CrMoVNb91 | High pressure steam | ||
| Stainless Steel |
300 series S.Stee |
304: 18Cr-8Ni | A182-F304 | A351-CF8 | DIN X5CrNi 18 9 | 0.04%min. carbon for temp>1000F(538C) |
| 304L: 18Cr-8Ni | A182-F304L | A351-CF3 | X2CrNi 1911 | Up to 800F(427C) | ||
| 316: 16Cr-12Ni-2Mo |
A182-F316 | A351-CF8M | DIN X5CrNiMo 18 10 | 0.04%min. carbon for temp>1000F(538C) |
||
| 316: 16Cr-12Ni-2Mo |
A182-F316L | A351-CF3M | X5CrNiMo17122 | Up to 800F(427C) | ||
| 316H | A182-F316H | n/a | ||||
| 321: 18Cr-10Ni-Ti | A182-F321 | X6CrNiTi1810 | 0.04% min. carbon (grade F321H) and heat treat at 2000F(1100C) for service temps.>1000F(538C) |
|||
| 321H | A182-F321H | n/a | ||||
| Alloy 20 | 28Ni-19Cr-Cu-Mo | A182-F20 | A351-CN7M | DIN 1.4500 | Service to 600F(316C) | |
| Duplex 2205 | 22Cr-5Ni-3Mo-N | A182-F51 | A890-J92205 | X2CrNiMoN22-5-3 DIN 10088-1 (95) |
Service to 600F(316C) -The original S31803 UNS designation has been supplemented by S32205 which has a higher minimum N, Cr, and Mo. |
|
| Super Duplex 2507 |
25Cr-7Ni-4Mo-N | A182-F53 | A351-CD4MCu A890 5A |
X2CrNiMoN25-7-4 DIN 10088-1 (95) |
Service to 600F(316C) | |
| Nickel-Iron Alloy |
Incoloy 800 | 33Ni-42Fe-21Cr | B564-N08800 | X10NiCrAlTi32-20 | Service to 1000F(538C) | |
| Incoloy 825 | 42Ni-21.5Cr3Mo-2.3Cu | B564-N08825 | A494-CU5MCuC | DIN 17744 | Service to 600F(316C) for N02200, 1200F(648C) for N02201 |
|
| Nickel | Nickel | 99/95Ni | B160-N02200 (bar) |
A494-CZ-100 | NW2200 | |
| Nickel-Copper |
Monel 400 | 67Ni-30Cu | B564-N04400 | A494-M35-1 | DIN 17730 | |
| Monel 500 | B564-N05500 | B564-N05500 | ||||
| Inconel Alloy |
Inconel 600 | 60Ni-22Cr-9Mo3.5Cb | B564-N06625 | A494-CW-6MC | Difficult to forge in close dye | |
| Inconel 625 | ||||||
| Titanium | Titanium | 98Ti | B381-Gr2 | B367-C2 | Ti2 |
